TOOL & UNIVERSAL CUTTER GRINDER FSM-CNC

In stock

Delivery Time: on request
Product inquiry
SKU
16636

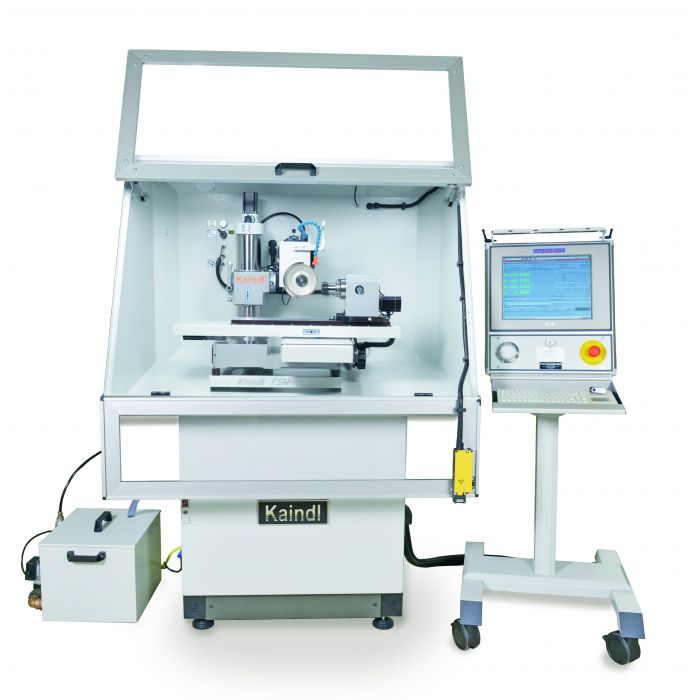

TOOL & UNIVERSAL CUTTER GRINDER FSM-CNC
This machine is equipped with a high-performance PC incl. touchscreen and digital jogwheel. This PC controls three linear- and a rotary axis simultaneously. The geometry of grinding is flexibly programmable by G-code. For cutters up to Ø 150 mm, cutter grinding on face, spiral, as well as chip space Built on steady IPC base, free programmable with G-code based on the solid Linux Ubuntu system software.

  • SK 40 support for ER collets
  • for cutters up to Ø 150 mm, cutter grinding of spiral and face as well as chip space
  • built on solid IPC-basis, freely programmable by G-code
  • based on Linux software
  • integrated electronic jogwheel

Description

BASIC VERSION:

  • FSM-CNC universal tool and cutter grinder 4 axis (X,Y,Z,A) Traverse distance X=300mm, Y=135mm, Z=192mm, A=circular axis
  • incl. central lubrication
  • incl. 5Mpix camera system with support and software for windows and Mac (notebook/PC not included)
  • incl. pump cooling with 30L cascade tank
  • incl. optional CBN cup wheel Ø 125 mm B76 or
    incl. diamond cup wheel Ø 125 mm D76
  • incl. PKD dresser unit
  • incl.support SK40 + Ø 10 mm ER collet


Plug & Play Extension:
Item-No. 18051 Module: Horizontal table for grinding of circular knives, form knives, saw blades
Item-No. 18782 Module: Programme package for HSS saw blades
Item-No. 18305 Module: High-frequency spindle
Item-No. 19188 Module: Circular grinding
Item-No. 18440 Module: Electronic 3D sensor KT130
