Countersink grinding devices
Countersink
Kaindl offers three different machines grinding countersinks, sharpening conical countersinks, and counter bore regrinding. The countersink grinding machine respectively the countersink grinding fixture SVR 20 can be combined with the drill grinding machine BSM 20. A chuck of up to 10mm diameter and a corresponding shank adapter for the BSM 20 are included in the basic configuration of the countersink grinding fixture.
The countersink grinding machine respectively countersink grinding fixture SVR 31 is suitable for the drill grinding machine BSG 60 and can handle countersinks with a shank of up to 12mm.

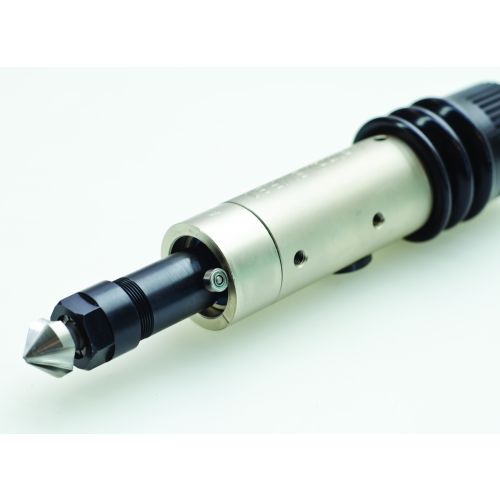

Kaindl's professional version for grinding countersinks, is the countersink grinding fixture SVZR for the drill grinding machine BSG 60t. This fixture for grinding countersinks, includes the ER-32 chuck for shanks of up to 20mm diameter. The alignment is carried out by means of an integrated laser. By way of the MK3 chuck and a special cam, it is now possible to grind multiple cutter tapered countersinks.
Milling cutters can be ground by way of the appropriate index inserts. End Mills with 2, 3, 4 or 5 blades can thus be ground in the standard version. Whether cutters, countersinks, fluted countersinks or cross-hole countersinks, Kaindl has the right countersink grinding fixture for every need.
